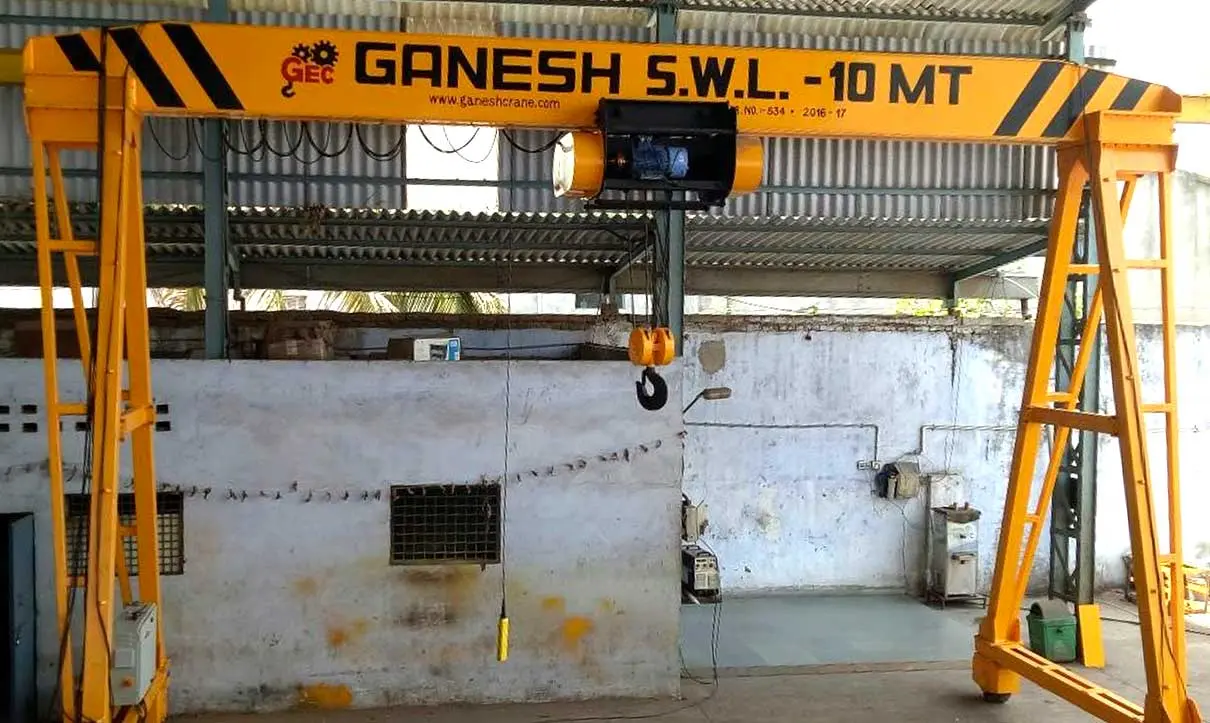

Single Beam Floor Running Goliath Crane
Short Description of product
- Capacity1ton to 10ton
- Span5mtr. to 50mtr.
- Duty ClassClass-I to Class-IV
- OperationFloor operated through pendent pushbutton station (Optional remote or cabin Operated)
Try the best quality Single Beam Floor Running Goliath Crane
The single girder cranes are a finest invention in the present time. It is a great option for the people who are related to the industrial field. The cranes can be used to lift heavy loads and materials from one place to another. The cranes can be extensively used to do a lot of industrial works. It has also reduced industrial work to a great extent. We should always rely to use these types of products. It has gained good importance in the industrial field.
Which is the best thing about Single Beam Floor Running Goliath Crane ?
We have now become one of the best Single Beam Floor Running Goliath Crane manufacturers in India. We mainly focus to give the best-quality cranes to our clients. This is mainly done with the help of our quality and highly skilled laborers. We mainly hire workers who have good experience in this field. No other companies give this type of quality service to the people.
Another best thing about our company is that we are mainly entrusted with the work of designing cranes. We use high-quality wheels to move the things smoothly from one to another. Our cranes also meet the specific dimensional clearance and other related matters. This thing should be appreciated.
A complete overview of Single Beam Floor Running Goliath Crane
Apart from all this, we are the leading Single Beam Floor Running Goliath Crane suppliers who supplies this product to various countries of the world with proper care and attention. We have also been serious about this matter and focus to deliver the same properly with advanced techniques.So, this is the reason why people should hire us. We never disappoint people or the clients in any way. We have also gained good appreciation in the modern industrial world by supplying quality products to our main clients.
Other Details of the Single Beam Floor Running Goliath Crane
- 1t. Cap. Single Girder Goliath Crane
- 2t. Cap. Single Girder Goliath Crane
- 3t. Cap. Single Girder Goliath Crane
- 5t. Cap. Single Girder Goliath Crane
- 7.5t. Cap. Single Girder Goliath Crane
- 10t. Cap. Single Girder Goliath Crane
Descriptions | Specifications |
Capacity | 1t.,2t.,3t.,5t.,7.5t.,10t. |
Area | Non-Hazardous/Hazardous as per customer requirement |
Test Load | 125% of SWL |
Height of Lift | 3 meters to 50 meters or as per customer requirements |
IS Code | IS807, IS3177 |
Type | Single Girder |
Locations | Indoor/Out door |
End Carriages | The End Carriages are welded construction type and fabricated from plates or Std. section type constructions. |
Bridge Girders | The girders are of plate fabricated box type construction design to sustain all stresses arising due to vertical & lateral forces with impact to which they are subjected. The maximum deflection of the main girder is limited to 1/750 the span of live loads including the weight of the trolley or hoist. |
Platform | M.S. Checkered plate/anti-skid plate’s full-length platform shall be provided on one side of the bridge girder in double girder crane |
End Stopper | Steel end stoppers are provided on either side of the bring to limit the motion of the trolley. All the buffers will employ springs for shack absorption. |
Steel | Steel confirming to IS-2062 or equivalent is used in the manufacturing of the main load bearing. (Mainly Essar or Sail make) |
Wheel Base | As per span and IS code |
L.T. Drive System | Twin drive type. |
Main-Hoisting | 1 meter per minute to 20 meters per minute or as per customer’s requirements (micro speed will be provided on demand) |
L.T. | 1 meter per minute to 120 meters per minute or as per customer’s requirements (micro speed will be provided on demand) |
C.T. | 1 meter per minute to 120 meters per minute or as per customer’s requirements (micro speed will be provided on demand) |
Ele. Motors | All motors are off S-4 duty, Squirrel cage ,40% CDF,150 S/hr., IP -55 with Class F insulation or as per required class and duty |
Brakes | Electro-Hydraulic shoe type/ Electromagnetic Disc /AC & DC Electromagnetic Shoe type brake shall be provided in Hoisting L.T. & C.T. These brakes are automatically released when the motor circuit is on and is applied the motor circuit is off |
Wire Rope & No. of aal | Selected as per crane capacity and IS Code he makes of wire rope will be used Usha-martin |
- Simple and optimum Design ensuring minimum dead weight, Wheel Load Headroom and easy to maintenance
- Easy to installation
- Reliable structure
- Higher efficiency to save power
- All motions are protected with Fail safe type brakes (which are applied when power supply is off and release when power supply is on.)
- All motions are protected with limit switches
- Rubber buffers are provided to extra protection against collision in case of limit switch failure
- Dustproof panel box with reputed make switch gear or as per customer’s approval
- 110 V Control voltage selected for protection of Crane operator against any electrical shock
- With electrical Interlocking to prevent simultaneous operation of opposite motion
- Using “C’ Rail / I Section type C.T. & Push button Festoon system it’s give long life and trouble free operation
- Unbreakable, Handy, light weight PVC Pushbutton
- Coupling less L.T. & C.T. Motion up to 7.5 Hp, (Less mechanism less maintenance)
- VFD in Long Travel Motion, Smooth Start & Stop (Maximize the life of Mechanism)
- Own Make Gearbox so which are easy to maintenance and we can provide any parts at any time from our stock
- Platform with hand railing for easy, simple & safe maintenance of the crane extended partially or totally along the girder width
- Radio Remote Control / Cabin Control
- Dual speed for all motion
- VFD in all motion
- Siren While Traveling a crane
- Load Cell with Display to weigh a Load or protection against overload
- Special Dimension Hook
- Other Reputed Brand Gearbox
- Drag Chain in Festoon system
- Protective Paints / Coating
- Over Lowering or over hoisting prevention limit switch
- Hook Safety Latch
- Overload Relays
- Travelling limit switch
- Rubber buffer
- Brakes in Hoisting as well as c.t & L.T.
- Main Switch
- On/ off switch in push button /Emergency stop
- MCB /fuse
- All 4 core cables with Earth cable
- Maintenance platform
- Siren in goliath crane
- Anti-collision device when more than one crane on same bay
Electric & Small parts are packed by high quality wooden crate to reduce distortion in conveying; Main beams, end carriages and electric hoist are packed by Wrapping of plastic roll It can reduce abrasion when transport.
- One to one service guarantees you the best purchasing experience.
- Strong production capacity and professional workmen guarantee you the short delivery.
- Strict delivery inspection guarantees you the high quality products.
- The short delivery time.
- One year warranty for Cranes
- Providing free quick-wear part
- Low charge for continue maintenance when warranty is expired
- Exclusive engineer support at any time.
- Highly professional training to end-users
